Specifications :

• MFG Part Number : CHS1024-24
• Product Group: CHS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-24 UNC
• Thread Code: 1024
• Hole Diameter: 0.189 +0.003 -0.00
• Sheet Thickness: 0.04

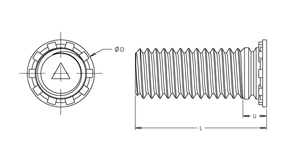

• Dim D: 0.256 ±0.015
• Dim L: 1.500 ±0.015
• Dim U Max.: 0.1
• CL to Edge Distance: 0.281
• Max Nut Tightening Torque: 24 in-lbs
• .060in CRS Installation Force: 6800 lbs
• .060in CRS Push Out: 450 lbs
• .060in CRS Torque Out: 50 in-lbs
• .064in Aluminum Installation Force: 5500 lbs
• .064in Aluminum Push Out: 270 lbs
• .064in Aluminum Torque Out: 30 in-lbs
