Specifications :

• MFG Part Number : CH2S-M3-20
• Product Group: CH2S
• Material: Stainless Steel; A286
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 3 +0.08 -0.00
• Sheet Thickness: 1.0-2.4
• 304SS Sheet Hardness: 86 HRB

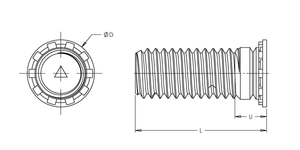

• Dim D: 4.6 ±0.4
• Dim L: 20.0 ±0.4
• Dim U Max.: 2.1
• CL to Edge Distance: 5.6
• 304SS Recommended Tightening Torque: 1.3 N-m
• 304SS Installation Force: 40 kN
• 304SS Push Out: 2500 N
• 304SS Torque Out: 1.6 N-m
• 304SS Pull Through: 3500 N
