Specifications :

• MFG Part Number : CH2S-440-5
• Product Group: CH2S
• Material: Stainless Steel; A286
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.111 +0.003 -0.000
• Sheet Thickness: 0.040-.095
• 304SS Sheet Hardness: 86 HRB

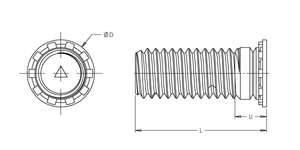

• Dim D: 0.176 ±0.015
• Dim L: 0.312 ±0.015
• Dim U Max.: 0.085
• CL to Edge Distance: 0.219
• 304SS Recommended Tightening Torque: 8.1 in-lbs
• 304SS Installation Force: 9000 lbs
• 304SS Push Out: 520 lbs
• 304SS Torque Out: 10.6 in-lbs
• 304SS Pull Through: 605 lbs.
