Specifications :

• MFG Part Number : CH2S-1032-6
• Product Group: CH2S
• Material: Stainless Steel; A286
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.189 +0.003 -0.000
• Sheet Thickness: 0.040-.095
• 304SS Sheet Hardness: 86 HRB

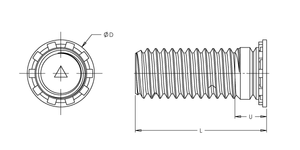

• Dim D: 0.256 ±0.015
• Dim L: 0.375 ±0.015
• Dim U Max.: 0.1
• CL to Edge Distance: 0.281
• 304SS Recommended Tightening Torque: 34 in-lbs
• 304SS Installation Force: 12000 lbs
• 304SS Push Out: 800 lbs
• 304SS Torque Out: 59.5 in-lbs
• 304SS Pull Through: 1500 lbs.
