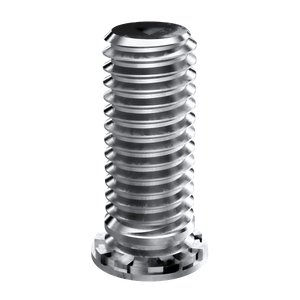

Self-Clinching Stud, Flush Head, Steel, Zinc, M5x0.8 x 12, 100 Pack

Specifications :

  • MFG Part Number : CHM5-12
  • Product Group: CH
  • Material: Steel; Heat Treated
  • Finish: Zinc Clear
  • Thread Type: Metric
  • Thread Size: M5x0.8
  • Thread Code: M5
  • Hole Diameter: 5.00 +0.08 -0.00
  • Sheet Thickness: 1

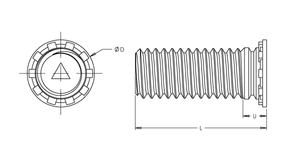

  • Dim D: 6.5 ±0.4
  • Dim L: 12.0 ±0.4
  • Dim U Max.: 2.7
  • CL to Edge Distance: 7.2
  • Max Nut Tightening Torque: 3.50 N-m
  • 1.500mm CRS Installation Force: 33.4 kN
  • 1.500mm CRS Push Out: 2000 N
  • 1.500mm CRS Torque Out: 6.5 N-m
  • 1.600mm Aluminum Intallation Force: 24.5 kN
  • 1.600mm Aluminum Push Out: 1070 N
  • 1.600mm Aluminum Torque Out: 3.5 N-m
