Specifications :

• MFG Part Number : CHM4-25
• Product Group: CH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Hole Diameter: 4.00 +0.08 -0.00
• Sheet Thickness: 1

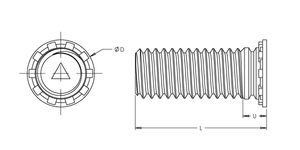

• Dim D: 5.9 ±0.4
• Dim L: 25.0 ±0.4
• Dim U Max.: 2.4
• CL to Edge Distance: 7.2
• Max Nut Tightening Torque: 1.70 N-m
• 1.500mm CRS Installation Force: 28.9 kN
• 1.500mm CRS Push Out: 1780 N
• 1.500mm CRS Torque Out: 4.2 N-m
• 1.600mm Aluminum Intallation Force: 20 kN
• 1.600mm Aluminum Push Out: 975 N
• 1.600mm Aluminum Torque Out: 2.9 N-m
