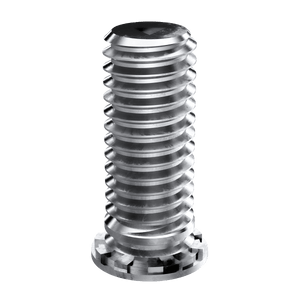

Self-Clinching Stud, Flush Head, Steel, Zinc, M3x0.5 x 15, 100 Pack

Specifications :

  • MFG Part Number : CHM3-15
  • Product Group: CH
  • Material: Steel; Heat Treated
  • Finish: Zinc Clear
  • Thread Type: Metric
  • Thread Size: M3x0.5
  • Thread Code: M3
  • Hole Diameter: 3.00 +0.08 -0.00
  • Sheet Thickness: 1

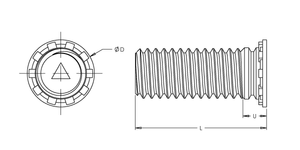

  • Dim D: 4.6 ±0.4
  • Dim L: 15.0 ±0.4
  • Dim U Max.: 2.1
  • CL to Edge Distance: 5.6
  • Max Nut Tightening Torque: 0.74 N-m
  • 1.500mm CRS Installation Force: 14.7 kN
  • 1.500mm CRS Push Out: 820 N
  • 1.500mm CRS Torque Out: 1.7 N-m
  • 1.600mm Aluminum Intallation Force: 12.9 kN
  • 1.600mm Aluminum Push Out: 600 N
  • 1.600mm Aluminum Torque Out: 1.7 N-m
