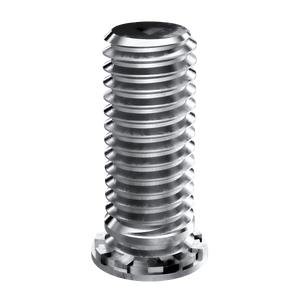

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 4-40 x 0.750, 100 Pack

Specifications :

  • MFG Part Number : CHA440-12
  • Product Group: CHA
  • Material: Aluminum; 2024-T4
  • Finish: None
  • Thread Type: Imperial
  • Thread Size: 4-40 UNC
  • Thread Code: 440
  • Hole Diameter: 0.111 +0.003 -0.00
  • Sheet Thickness: 0.04

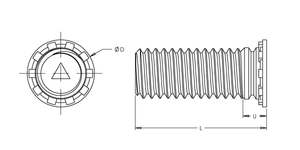

  • Dim D: 0.176 ±0.015
  • Dim L: 0.750 ±0.015
  • Dim U Max.: 0.085
  • CL to Edge Distance: 0.219
  • Max Nut Tightening Torque: 3 in-lbs
