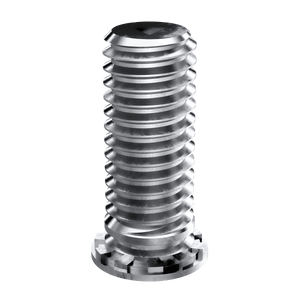

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.375, 50 Pack

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.375, 50 Pack

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.375, 50 Pack

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.375, 50 Pack

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.375, 50 Pack

Specifications :

MFG Part Number : CHA420-6
Product Group: CHA
Material: Aluminum; 2024-T4
Finish: None
Thread Type: Imperial
Thread Size: 1/4-20 UNC
Thread Code: 420
Hole Diameter: 0.249 +0.003 -0.00
Sheet Thickness: 0.062

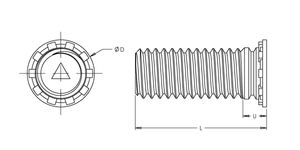

Dim D: 0.337 ±0.015
Dim L: 0.375 ±0.015
Dim U Max.: 0.135
CL to Edge Distance: 0.312
Max Nut Tightening Torque: 34.8 in-lbs
