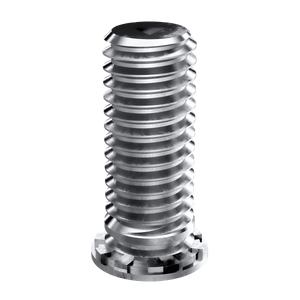

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 10-32 x 1.000, 100 Pack

Specifications :

  • MFG Part Number : CHA1032-16
  • Product Group: CHA
  • Material: Aluminum; 2024-T4
  • Finish: None
  • Thread Type: Imperial
  • Thread Size: 10-32 UNF
  • Thread Code: 1032
  • Hole Diameter: 0.189 +0.003 -0.00
  • Sheet Thickness: 0.04

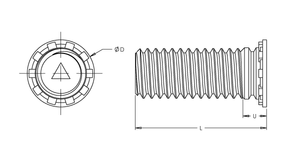

  • Dim D: 0.256 ±0.015
  • Dim L: 1.000 ±0.015
  • Dim U Max.: 0.1
  • CL to Edge Distance: 0.281
  • Max Nut Tightening Torque: 18
