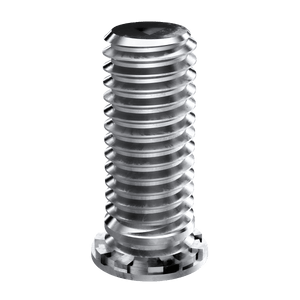

Self-Clinching Stud, Flush Head, Steel, Zinc, 8-32 x 1.500, 100 Pack

Specifications :

  • MFG Part Number : CH832-24
  • Product Group: CH
  • Material: Steel; Heat Treated
  • Finish: Zinc Clear
  • Thread Type: Imperial
  • Thread Size: 8-32 UNC
  • Thread Code: 832
  • Hole Diameter: 0.163 +0.003 -0.00
  • Sheet Thickness: 0.04

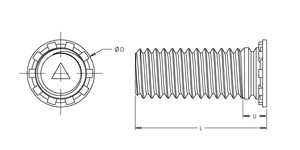

  • Dim D: 0.237 ±0.015
  • Dim L: 1.500 ±0.015
  • Dim U Max.: 0.09
  • CL to Edge Distance: 0.281
  • Max Nut Tightening Torque: 17 in-lbs
  • .060in CRS Installation Force: 6800 lbs
  • .060in CRS Push Out: 375 lbs
  • .060in CRS Torque Out: 40 in-lbs
  • .064in Aluminum Installation Force: 4800 lbs
  • .064in Aluminum Push Out: 220 lbs
  • .064in Aluminum Torque Out: 28 in-lbs
