Specifications :

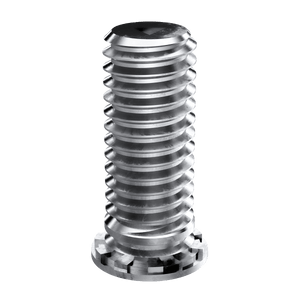

• MFG Part Number : CH632-4
• Product Group: CH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.137 +0.003 -0.00
• Sheet Thickness: 0.04

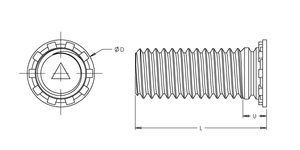

• Dim D: 0.206 ±0.015
• Dim L: 0.250 ±0.015
• Dim U Max.: 0.09
• CL to Edge Distance: 0.25
• Max Nut Tightening Torque: 9 in-lbs
• .060in CRS Installation Force: 4700 lbs
• .060in CRS Push Out: 300 lbs
• .060in CRS Torque Out: 20 in-lbs
• .064in Aluminum Installation Force: 3800 lbs
• .064in Aluminum Push Out: 180 lbs
• .064in Aluminum Torque Out: 17 in-lbs
