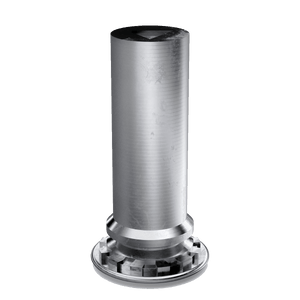

Self-Clinching Pin, Heat Treated Steel, Zinc, 3 x 18, 100 Pack

Specifications :

  • MFG Part Number : CH3MM-18
  • Product Group: CH
  • Material: Steel; Heat Treated
  • Finish: Zinc Clear
  • Thread Type: Metric
  • Thread Size: Unthreaded
  • Hole Diameter: 3.5 +0.08 -0.00
  • Sheet Thickness: 1

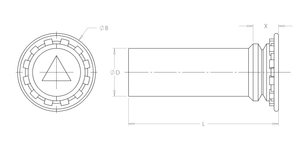

  • Dim B: 5.3 ±0.4
  • Dim D: 3.00 ±0.05
  • Dim L: 18.0 ±0.4
  • X Max.: 2.3
  • CL to Edge Distance: 6.4
