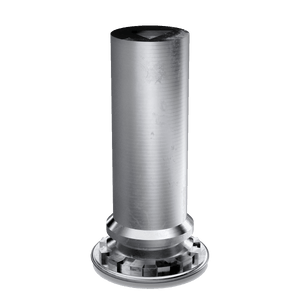

Self-Clinching Pin, Heat Treated Steel, Zinc, 0.281 x 1.000, 100 Pack

Self-Clinching Pin, Heat Treated Steel, Zinc, 0.281 x 1.000, 100 Pack

Self-Clinching Pin, Heat Treated Steel, Zinc, 0.281 x 1.000, 100 Pack

Self-Clinching Pin, Heat Treated Steel, Zinc, 0.281 x 1.000, 100 Pack

Self-Clinching Pin, Heat Treated Steel, Zinc, 0.281 x 1.000, 100 Pack

Specifications :

MFG Part Number : CH281-16
Product Group: CH
Material: Steel; Heat Treated
Finish: Zinc Clear
Thread Type: Imperial
Thread Size: Unthreaded
Hole Diameter: 0.312 +0.003 -0.000
Sheet Thickness: 0.093

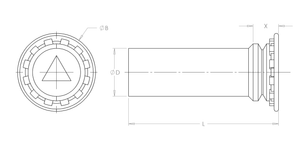

Dim B: 0.380 ±0.015
Dim D: 0.281 ±0.002
Dim L: 1.000 ±0.015
X Max.: 0.16
CL to Edge Distance: 0.38
