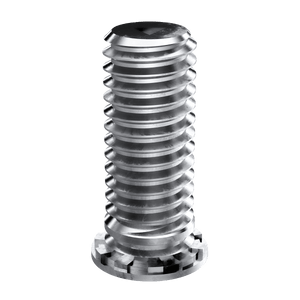

Self-Clinching Stud, Flush Head, Steel, Zinc, 5/16-18 x 1.500, 50 Pack
Self-Clinching Stud, Flush Head, Steel, Zinc, 5/16-18 x 1.500, 50 Pack
Self-Clinching Stud, Flush Head, Steel, Zinc, 5/16-18 x 1.500, 50 Pack
Self-Clinching Stud, Flush Head, Steel, Zinc, 5/16-18 x 1.500, 50 Pack

Self-Clinching Stud, Flush Head, Steel, Zinc, 5/16-18 x 1.500, 50 Pack

Specifications :

  • MFG Part Number : CH518-24
  • Product Group: CH
  • Material: Steel; Heat Treated
  • Finish: Zinc Clear
  • Thread Type: Imperial
  • Thread Size: 5/16-18 UNC
  • Thread Code: 518
  • Hole Diameter: 0.311 +0.003 -0.00
  • Sheet Thickness: 0.093

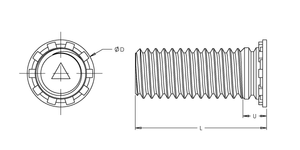

  • Dim D: 0.376 ±0.015
  • Dim L: 1.500 ±0.015
  • Dim U Max.: 0.16
  • CL to Edge Distance: 0.375
  • Max Nut Tightening Torque: 120 in-lbs
  • .093in CRS Installation Force: 10000 lbs
  • .093in CRS Push Out: 650 lbs
  • .093in CRS Torque Out: 175 in-lbs
  • .093in Aluminum Installation Force: 6500 lbs
  • .093in Aluminum Push Out: 430 lbs
  • .093in Aluminum Torque Out: 100 in-lbs
