Specifications :

• MFG Part Number : CFEOXM5
• Product Group: CFEOX
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 7.39 +0.08 -0.00
• Sheet Thickness: 0.99

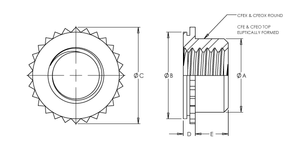

• Dim A Max.: 6.48
• Dim B Max.: 7.37
• Dim C: 8.17 ±0.13
• Dim D Max.: 1.02
• Dim E: 3.05 +0.4
• CL to Edge Distance: 5.2
• Installation Sheet Thickness: 1.0 mm
• CRS Installation Force: 11.1 N
• CRS Push Out: 1156 N
• CRS Torque Out: 5.42 N-m
• 5052 H34 Aluminum Installation Force: 6.7 kN
• 5052 H34 Aluminum Push Out: 689 N
• 5052 H34 Aluminum Torque Out: 5.42 N-m
