Specifications :

• MFG Part Number : CFEM3ML
• Product Group: CFE
• Material: Stainless Steel; 300 Series
• Finish: Black Dry Film Lubricant
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.39 +0.08 -0.00
• Sheet Thickness: 1.5

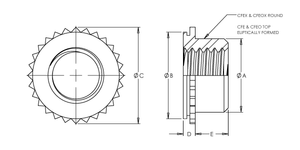

• Dim A Max.: 3.96
• Dim B Max.: 4.37
• Dim C: 4.88 ±0.13
• Dim D Max.: 1.53
• Dim E: 1.90 +0.4
• CL to Edge Distance: 3.6
• Installation Sheet Thickness: 1.500 mm
• CRS Installation Force: 6.7 N
• CRS Push Out: 934 N
• CRS Torque Out: 1.35 N-m
• 5052 H34 Aluminum Installation Force: 4.0 kN
• 5052 H34 Aluminum Push Out: 600 N
• 5052 H34 Aluminum Torque Out: 1.35 N-m
