Specifications :

• MFG Part Number : CF40S-M3-6.35
• Product Group: CF40S
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.2 +0.08 -0.000
• Sheet Thickness: 0.94-6.35

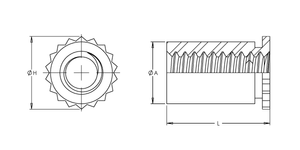

• Dim A Max.: 4.2
• Dim H Nom.: 4.92
• Dim L: 6.35 +0.05 -0.13
• CL to Edge Distance: 3.2
• 1mm CRS Rec Tightening Torque: 0.44 N-m
• 1mm CRS Installation Force: 1300 lbs
• 1mm CRS Push Out: 334 N
• 1mm CRS Torque Out: 1.1 N-m
• 1mm 5052-H34 Aluminum Max Tightening Torque: 4.5 kN
• 1mm 5052-H34 Aluminum Installation Force: 223 N
• 1mm 5052-H34 Aluminum Push Out: 1.1 N-m
• 1MM 5052-H34 Aluminum Torque Out: 0.44 N-M
