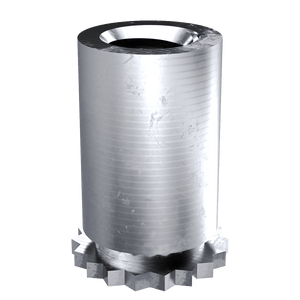

Self-Clinching Standoff, Miniature, Steel, Zinc Yellow, 4-40 x 0.275, 100 Pack
Self-Clinching Standoff, Miniature, Steel, Zinc Yellow, 4-40 x 0.275, 100 Pack
Self-Clinching Standoff, Miniature, Steel, Zinc Yellow, 4-40 x 0.275, 100 Pack
Self-Clinching Standoff, Miniature, Steel, Zinc Yellow, 4-40 x 0.275, 100 Pack

Self-Clinching Standoff, Miniature, Steel, Zinc Yellow, 4-40 x 0.275, 100 Pack

Specifications :

  • MFG Part Number : CF40-440-.275
  • Product Group: CF40
  • Material: Steel; Heat Treated
  • Finish: Zinc Yellow
  • Thread Type: Imperial
  • Thread Size: 4-40 UNC
  • Thread Code: 440
  • Hole Diameter: 0.166 +0.003 -0.000
  • Sheet Thickness: 0.037 -0.250

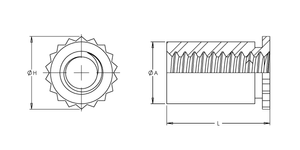

  • Dim A Max.: 0.165
  • Dim H Nom.: 0.194
  • Dim L: 0.275 +0.002 -0.005
  • CL to Edge Distance: 0.126
  • .040in CRS Rec Tightening Torque: 3.8 in-lbs
  • .040in CRS Installation Force: 1300 lbs
  • .040in CRS Push Out: 75 lbs
  • .040in CRS Torque Out: 10 in-lbs
  • .040in 5052-H34 Aluminum Max Tightening Torque: 3.8 in-lbs
  • .040in 5052-H34 Aluminum Installation Force: 1000 lbs
  • .040in 5052-H34 Aluminum Push Out: 50 lbs
  • .040in 5052-H34 Aluminum Torque Out: 10 in-lbs
