Specifications :

• MFG Part Number : CS256-2
• Product Group: CS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 2-56 UNC
• Thread Code: 256
• Hole Diameter: 0.166 +0.003 -0.00
• Sheet Thickness: 0.056

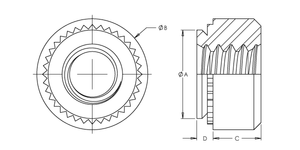

• Dim A Max.: 0.165
• Dim B: 0.250 ±0.010
• Dim C: 0.070 ±0.010
• Dim D Max.: 0.054
• CL to Edge Distance: 0.19
• CRS Installation Force: 2500-3500 lbs
• CRS Push Out: 230 lbs
• CRS Torque Out: 18 in-lbs
• 5052 H34 Aluminum Installation Force: 1500-2000 lbs
• 5052 H34 Aluminum Push Out: 170 lbs
• 5052 H34 Aluminum Torque Out: 13 in-lbs
