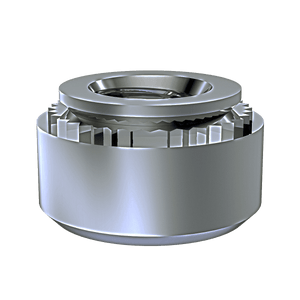

Self-Clinching Nut, Aluminum, 2024-T4 Aluminum, 2-56 x 1, 100 Pack

Specifications :

  • MFG Part Number : CA256-1
  • Product Group: CA
  • Material: Aluminum; 2024-T4
  • Finish: None
  • Thread Type: Imperial
  • Thread Size: 2-56 UNC
  • Thread Code: 256
  • Hole Diameter: 0.166 +0.003 -0.00
  • Sheet Thickness: 0.04

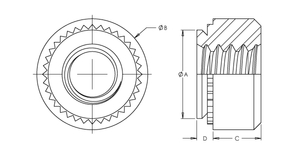

  • Dim A Max.: 0.165
  • Dim B: 0.250 ±0.010
  • Dim C: 0.070 ±0.010
  • Dim D Max.: 0.038
  • CL to Edge Distance: 0.19
