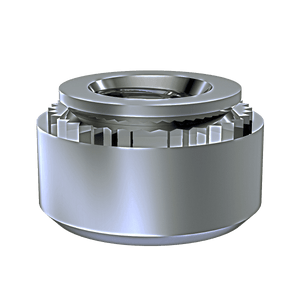

Self-Clinching Nut, Aluminum, 2024-T4 Aluminum, 1/4-20 x 2, 50 Pack

Specifications :

  • MFG Part Number : CA420-2
  • Product Group: CA
  • Material: Aluminum; 2024-T4
  • Finish: None
  • Thread Type: Imperial
  • Thread Size: 1/4-20 UNC
  • Thread Code: 420
  • Hole Diameter: 0.344 +0.003 -0.00
  • Sheet Thickness: 0.091

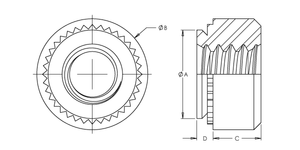

  • Dim A Max.: 0.343
  • Dim B: 0.440 ±0.010
  • Dim C: 0.170 ±0.010
  • Dim D Max.: 0.087
  • CL to Edge Distance: 0.34
