Specifications :

• MFG Part Number : CKNSM6-1
• Product Group: CKNS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M6x1.0
• Thread Code: M6
• Hole Diameter: 8.00 +0.08 -0.00
• Sheet Thickness: 1

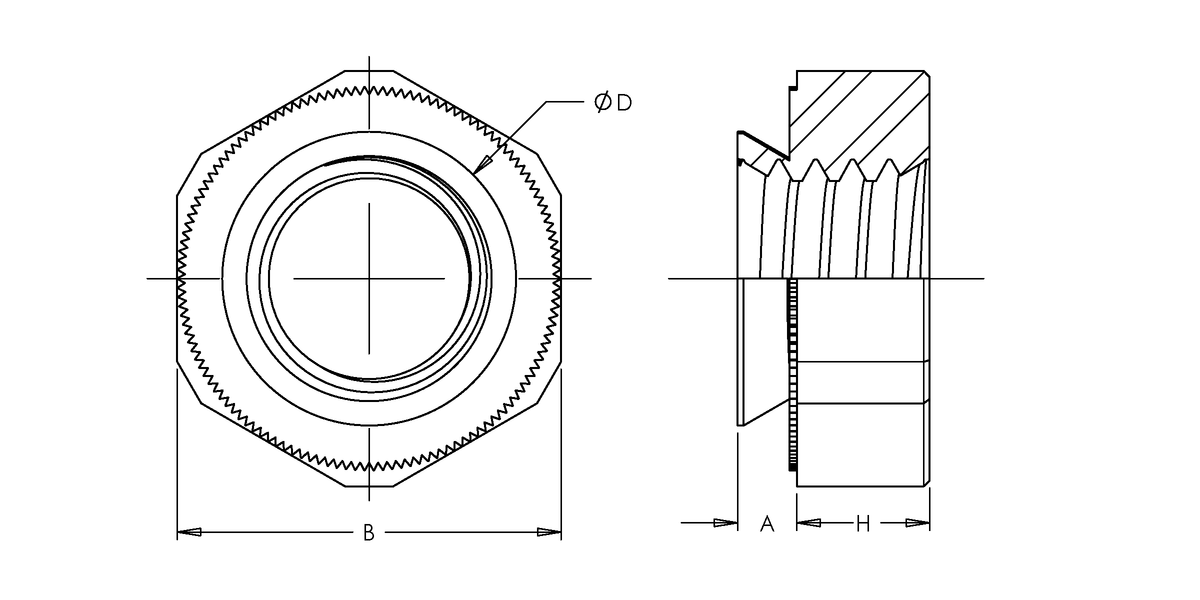

• Dim A Max.: 1
• Dim B: 10.00 +0.00 -0.20
• Dim D Max.: 7.95
• Dim H: 4.00 ±0.10
• CL to Edge Distance: 8.0
• CRS Installation Force: 16.6 kN
• CRS Push Out: 880 N
• CRS Torque Out: 7.84 N-m
• 5052 H34 Aluminum Installation Force: 5.8 kN
• 5052 H34 Aluminum Push Out: 290 N
• 5052 H34 Aluminum Torque Out: 1.17 N-m
