Specifications :

• MFG Part Number : CKNSM4-2
• Product Group: CKNS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Hole Diameter: 5.50 +0.08 -0.00
• Sheet Thickness: 1.4

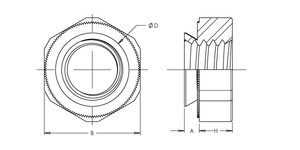

• Dim A Max.: 1.4
• Dim B: 7.00 +0.00 -0.20
• Dim D Max.: 5.45
• Dim H: 2.20 ±0.10
• CL to Edge Distance: 5.5
• CRS Installation Force: 13.7 kN
• CRS Push Out: 880 N
• CRS Torque Out: 3.92 N-m
• 5052 H34 Aluminum Installation Force: 13.7 kN
• 5052 H34 Aluminum Push Out: 880 N
• 5052 H34 Aluminum Torque Out: 7.84 N-m
