Specifications :

• MFG Part Number : CKNSM3-1
• Product Group: CKNS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.50 +0.08 -0.00
• Sheet Thickness: 1

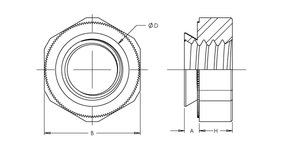

• Dim A Max.: 1
• Dim B: 5.50 +0.00 -0.20
• Dim D Max.: 4.45
• Dim H: 2.00 ±0.10
• CL to Edge Distance: 4.5
• CRS Installation Force: 11.7 kN
• CRS Push Out: 490 N
• CRS Torque Out: 1.96 N-m
• 5052 H34 Aluminum Installation Force: 8.8 kN
• 5052 H34 Aluminum Push Out: 440 N
• 5052 H34 Aluminum Torque Out: 2.94 N-m
