Specifications :

• MFG Part Number : CKNM8-2
• Product Group: CKN
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M8x1.25
• Thread Code: M8
• Hole Diameter: 10.00 +0.08 -0.00
• Sheet Thickness: 1.4

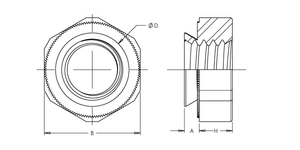

• Dim A Max.: 1.4
• Dim B: 13.00 +0.00 -0.20
• Dim D Max.: 9.95
• Dim H: 4.50 ±0.10
• CL to Edge Distance: 10.0
• CRS Installation Force: 24.5 kN
• CRS Push Out: 1370 N
• CRS Torque Out: 15.69 N-m
• 5052 H34 Aluminum Installation Force: 7.8 kN
• 5052 H34 Aluminum Push Out: 390 N
• 5052 H34 Aluminum Torque Out: 1.96 N-m
