Specifications :

• MFG Part Number : CFC-1-832-12
• Product Group: CFC-1
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.290 +0.003 -0.000
• Sheet Thickness: 0.062

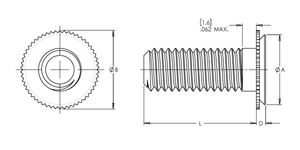

• Dim A Max.: 0.289
• Dim B: 0.328 ±0.010
• Dim D Max.: 0.041
• Dim L: 0.750 ±0.015
• CL to Edge Distance: 0.219
• Max Nut Tightening Torque: 18.00 in-lbs.
• Max. Hole in attached parts: 0.185
• CRS Installation Force: 4000 lbs
• CRS Pull Out: 270 lbs.
• 5052 H34 Aluminum Installation Force: 2800 lbs.
• 5052 H34 Aluminum Pull Out: 180 lbs.
