Specifications :

• MFG Part Number : CFC-1-1032-12
• Product Group: CFC-1
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.312 +0.003 -0.000
• Sheet Thickness: 0.062

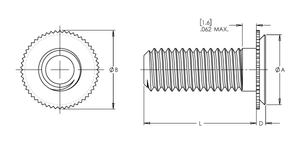

• Dim A Max.: 0.311
• Dim B: 0.350 ±0.010
• Dim D Max.: 0.041
• Dim L: 0.750 ±0.015
• CL to Edge Distance: 0.25
• Depth of Blind Hole: 0.043
• Max Nut Tightening Torque: 32.00 in-lbs.
• Max. Hole in attached parts: 0.21
• CRS Installation Force: 5000 lbs
• CRS Pull Out: 290 lbs.
• 5052 H34 Aluminum Installation Force: 4000 lbs.
• 5052 H34 Aluminum Pull Out: 210 lbs.
