Specifications :

• MFG Part Number : CFA-1-M5-12
• Product Group: CFA-1
• Material: Aluminum; 2024-T4
• Finish: None
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 7.93 +0.08 -0.00
• Sheet Thickness: 1.6

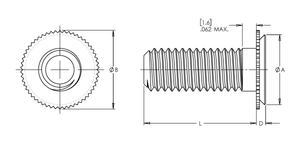

• Dim A Max.: 7.9
• Dim B: 8.89 ±0.25
• Dim D Max.: 1.04
• Dim L: 12.0 ±0.4
• CL to Edge Distance: 6.4
• Depth of Blind Hole: 1.1
• Max Nut Tightening Torque: 2.16 N-m
• Max. Hole in attached parts: 5.6
• CRS Installation Force: NR
• CRS Pull Out: NR
• 5052 H34 Aluminum Installation Force: 17.8 kN
• 5052 H34 Aluminum Pull Out: 755 N
