Specifications :

• MFG Part Number : CFA-1-440-12
• Product Group: CFA-1
• Material: Aluminum; 2024-T4
• Finish: None
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.172 +0.003 -0.000
• Sheet Thickness: 0.062

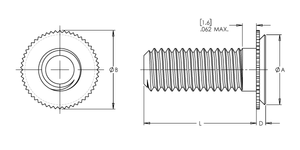

• Dim A Max.: 0.171
• Dim B: 0.205 ±0.010
• Dim D Max.: 0.041
• Dim L: 0.750 ±0.015
• CL to Edge Distance: 0.156
• Depth of Blind Hole: 0.043
• Max Nut Tightening Torque: 2.85 in-lbs.
• Max. Hole in attached parts: 0.135
• CRS Installation Force: NR
• CRS Pull Out: NR
• 5052 H34 Aluminum Installation Force: 1400 lbs.
• 5052 H34 Aluminum Pull Out: 125 lbs.
