Specifications :

• MFG Part Number : CFC-2-M5-16
• Product Group: CFC-2
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 7.93 +0.08 -0.00
• Sheet Thickness: 2.4

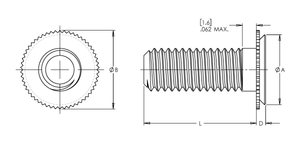

• Dim A Max.: 7.9
• Dim B: 8.89 ±0.25
• Dim D Max.: 1.8
• Dim L: 16.0 ±0.4
• CL to Edge Distance: 6.4
• Depth of Blind Hole: 1.91
• Max Nut Tightening Torque: 3.60 N-m
• CRS Installation Force: 17.8 kN
• CRS Pull Out: 3020 N
• 5052 H34 Aluminum Installation Force: 15.6 kN
• 5052 H34 Aluminum Pull Out: 1600 N
