Specifications :

• MFG Part Number : CFC-2-632-4
• Product Group: CFC-2
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.093

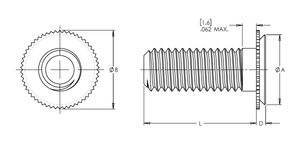

• Dim A Max.: 0.212
• Dim B: 0.250 ±0.010
• Dim D Max.: 0.071
• Dim L: 0.250 ±0.015
• CL to Edge Distance: 0.188
• Depth of Blind Hole: 0.075
• Max Nut Tightening Torque: 8.75 in-lbs.
• CRS Installation Force: 2700 lbs
• CRS Pull Out: 350 lbs.
• 5052 H34 Aluminum Installation Force: 2500 lbs.
• 5052 H34 Aluminum Pull Out: 260 lbs.
