Specifications :

• MFG Part Number : CFA-2-632-16
• Product Group: CFA-2
• Material: Aluminum; 2024-T4
• Finish: None
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.093

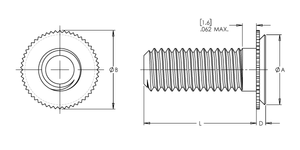

• Dim A Max.: 0.212
• Dim B: 0.250 ±0.010
• Dim D Max.: 0.071
• Dim L: 1.000 ±0.015
• CL to Edge Distance: 0.188
• Depth of Blind Hole: 0.075
• Max Nut Tightening Torque: 5.40 in-lbs.
• Max. Hole in attached parts: 0.16
• CRS Installation Force: NR
• CRS Pull Out: NR
• 5052 H34 Aluminum Installation Force: 2500 lbs.
• 5052 H34 Aluminum Pull Out: 220 lbs.
