Specifications :

• MFG Part Number : CFA-2-1032-6
• Product Group: CFA-2
• Material: Aluminum; 2024-T4
• Finish: None
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.312 +0.003 -0.000
• Sheet Thickness: 0.093

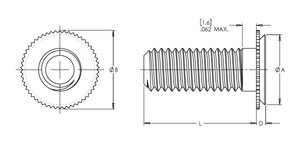

• Dim A Max.: 0.311
• Dim B: 0.350 ±0.010
• Dim D Max.: 0.071
• Dim L: 0.375 ±0.015
• CL to Edge Distance: 0.25
• Depth of Blind Hole: 0.075
• Max Nut Tightening Torque: 19.20 in-lbs.
• Max. Hole in attached parts: 0.21
• CRS Installation Force: NR
• CRS Pull Out: NR
• 5052 H34 Aluminum Installation Force: 3500 lbs.
• 5052 H34 Aluminum Pull Out: 300 lbs.
