Specifications :

• MFG Part Number : CFBSOSM5-16
• Product Group: CFBSOS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 7.14 +0.08 -0.00
• Sheet Thickness: 1.27

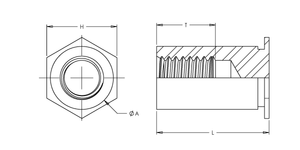

• Dim A: 7.12 +0.00 -0.13
• Dim H Nom.: 7.9
• Dim L: 16.00 +0.05 -0.13
• Dim T Min.: 6.5
• CL to Edge Distance: 8.0
• Max Nut Tightening Torque: 2.88 N-m
• 1.500mm CRS Installation Force: 17.8 kN
• 1.500mm CRS Push Out: 2490 N
• 1.500mm CRS Torque Out: 8.47 N-m
• 1.500mm CRS Pull Through: 2488 N
• 1.500mm 5052 H34 Aluminum Intallation Force: 10.7 kN
• 1.500mm 5052 H34 Aluminum Push Out: 1780 N
• 1.500mm 5052 H34 Aluminum Torque Out: 5.08 N-m
• 1.500mm 5052 H34 Aluminum Pull Through: 2060 N
