Specifications :

• MFG Part Number : CFBSOS6440-32
• Product Group: CFBSOS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.04

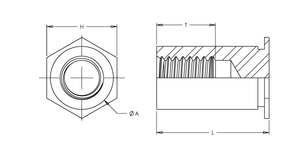

• Dim A: 0.212 +0.000 -0.005
• Dim H Nom.: 0.25
• Dim L: 1.000 +0.002 -0.005
• Dim T Min.: 0.375
• CL to Edge Distance: 0.27
• Max Nut Tightening Torque: 3.8 in-lbs
• .060in CRS Installation Force: 3300 lbs
• .060in CRS Push Out: 420 lbs
• .060in CRS Torque Out: 35 in-lbs
• .060in CRS Pull Through: 304 lbs
• .060in 5052 H34 Aluminum Installation Force: 1700 lbs
• .060in 5052 H34 Aluminum Push Out: 300 lbs
• .060in 5052 H34 Aluminum Torque Out: 25 in-lbs
• .060in 5052 H34 Aluminum Pull Through: 248 lbs
