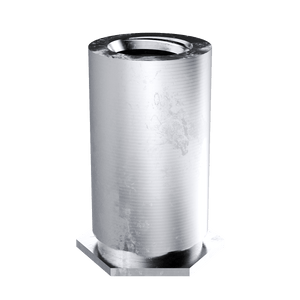

Self-Clinching Standoff, Blind Thread, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, Hole Dia.: 0.250, 100 Pack

Self-Clinching Standoff, Blind Thread, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, Hole Dia.: 0.250, 100 Pack

Self-Clinching Standoff, Blind Thread, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, Hole Dia.: 0.250, 100 Pack

Self-Clinching Standoff, Blind Thread, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, Hole Dia.: 0.250, 100 Pack

Self-Clinching Standoff, Blind Thread, 300 Series Stainless Steel, Passivated, 6-32 x 0.500, Hole Dia.: 0.250, 100 Pack

$99,999.00 USD

Specifications :

MFG Part Number : CFBSOS632-16
Product Group: CFBSOS
Material: Stainless Steel; 300 Series
Finish: Passivated
Thread Type: Imperial
Thread Size: 6-32 UNC
Thread Code: 632
Hole Diameter: 0.213 +0.003 -0.000
Sheet Thickness: 0.04

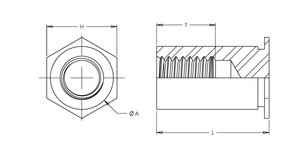

Dim A: 0.212 +0.000 -0.005
Dim H Nom.: 0.25
Dim L: 0.500 +0.002 -0.005
Dim T Min.: 0.25
CL to Edge Distance: 0.27
Max Nut Tightening Torque: 7 in-lbs
.060in CRS Installation Force: 3300 lbs
.060in CRS Push Out: 420 lbs
.060in CRS Torque Out: 35 in-lbs
.060in CRS Pull Through: 304 lbs
.060in 5052 H34 Aluminum Installation Force: 1700 lbs
.060in 5052 H34 Aluminum Push Out: 300 lbs
.060in 5052 H34 Aluminum Torque Out: 25 in-lbs
.060in 5052 H34 Aluminum Pull Through: 248 lbs
