Specifications :

• MFG Part Number : CFBSOM3-22
• Product Group: CFBSO
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.22 +0.08 -0.00
• Sheet Thickness: 1

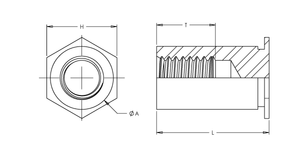

• Dim A: 4.20 +0.00 -0.13
• Dim H Nom.: 4.8
• Dim L: 22.00 +0.05 -0.13
• Dim T Min.: 9.5
• CL to Edge Distance: 6.0
• Max Nut Tightening Torque: 0.55 N-m
• 1.500mm CRS Installation Force: 9.8 kN
• 1.500mm CRS Push Out: 1000 N
• 1.500mm CRS Torque Out: 2.15 N-m
• 1.500mm CRS Pull Through: 1465 N
• 1.500mm 5052 H34 Aluminum Intallation Force: 4.9 kN
• 1.500mm 5052 H34 Aluminum Push Out: 710 N
• 1.500mm 5052 H34 Aluminum Torque Out: 1.24 N-m
• 1.500mm 5052 H34 Aluminum Pull Through: 1245 N
