Specifications :

• MFG Part Number : CFBSOA1032-18
• Product Group: CFBSOA
• Material: Aluminum; 7075-T6
• Finish: None
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.281 +0.003 -0.000
• Sheet Thickness: 0.05

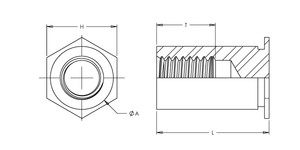

• Dim A: 0.280 +0.000 -0.005
• Dim H Nom.: 0.312
• Dim L: 0.562 +0.002 -0.005
• Dim T Min.: 0.25
• CL to Edge Distance: 0.31
• Max Nut Tightening Torque: 19 in-lbs
• .060in CRS Installation Force: NR
• .060in CRS Push Out: nr
• .060in CRS Torque Out: nr
• .060in CRS Pull Through: NR
• .060in 5052 H34 Aluminum Installation Force: 2400 lbs
• .060in 5052 H34 Aluminum Push Out: 400 lbs
• .060in 5052 H34 Aluminum Torque Out: 45 in-lbs
• .060in 5052 H34 Aluminum Pull Through: 348 lbs
