Specifications :

• MFG Part Number : CFBSO832-12
• Product Group: CFBSO
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.05

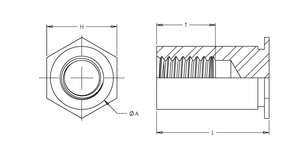

• Dim A: 0.280 +0.000 -0.005
• Dim H Nom.: 0.312
• Dim L: 0.375 +0.002 -0.005
• Dim T Min.: 0.156
• CL to Edge Distance: 0.31
• Max Nut Tightening Torque: 18 in-lbs
• .060in CRS Installation Force: 4000 lbs
• .060in CRS Push Out: 560 lbs
• .060in CRS Torque Out: 75 in-lbs
• .060in CRS Pull Through: 700 lbs
• .060in 5052 H34 Aluminum Installation Force: 2400 lbs
• .060in 5052 H34 Aluminum Push Out: 400 lbs
• .060in 5052 H34 Aluminum Torque Out: 45 in-lbs
• .060in 5052 H34 Aluminum Pull Through: 580 lbs
