Specifications :

• MFG Part Number : CFBSO440-28
• Product Group: CFBSO
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.166 +0.003 -0.000
• Sheet Thickness: 0.04

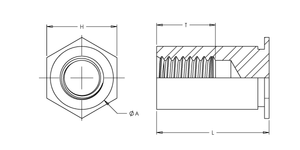

• Dim A: 0.165 +0.000 -0.005
• Dim H Nom.: 0.187
• Dim L: 0.875 +0.002 -0.005
• Dim T Min.: 0.375
• CL to Edge Distance: 0.23
• Max Nut Tightening Torque: 4.75 in-lbs
• .060in CRS Installation Force: 2200 lbs
• .060in CRS Push Out: 225 lbs
• .060in CRS Torque Out: 19 in-lbs
• .060in CRS Pull Through: 330 lbs
• .060in 5052 H34 Aluminum Installation Force: 1100 lbs
• .060in 5052 H34 Aluminum Push Out: 160 lbs
• .060in 5052 H34 Aluminum Torque Out: 11 in-lbs
• .060in 5052 H34 Aluminum Pull Through: 280 lbs
