Specifications :

• MFG Part Number : CFB832-2
• Product Group: CFB
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.213 +0.003 -0.00
• Sheet Thickness: 0.056

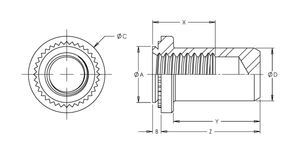

• Dim A Max. Shank Dia.: 0.212
• Dim B Max.: 0.054
• Dim C: 0.310 ±0.010
• Dim D Max. Barrel Dia.: 0.204
• X Min. Depth Full Thread: 0.28
• Dim Y Max.: 0.385
• Dim Z: 0.440 ±0.010
• CL to Edge Distance: 0.27
• CRS Installation Force: 5000 lbs
• CRS Push Out: 285 lbs
• CRS Torque Out: 45 in-lbs
• 5052 H34 Aluminum Installation Force: 3000 lbs
• 5052 H34 Aluminum Push Out: 220 lbs
• 5052 H34 Aluminum Torque Out: 35 in-lbs
