Specifications :

• MFG Part Number : CFAS428-2
• Product Group: CFAS
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 1/4-28 UNF
• Thread Code: 428
• Hole Diameter: 0.515 +0.003 -0.00
• Sheet Thickness: 0.054

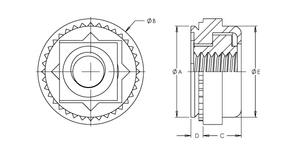

• Dim A Max.: 0.514
• Dim B: 0.600 ±0.015
• Dim C Max.: 0.21
• Dim D Max.: 0.054
• Dim E Max.: 0.51
• CL to Edge Distance: 0.42
• CRS Installation Force: 5000 lbs
• CRS Push Out: 500 lbs
• CRS Torque Out: 325 in-lbs
• 5052 H34 Aluminum Installation Force: 3000 lbs
• 5052 H34 Aluminum Push Out: 400 lbs
• 5052 H34 Aluminum Torque Out: 325 in-lbs
• AL 2024-T3 Installation Force: 5000 lbs
• AL 2024-T3 Push Out Force: 300 lbs
