Specifications :

• MFG Part Number : CFACM5-1
• Product Group: CFAC
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 10.31 +0.08 -0.00
• Sheet Thickness: 0.97

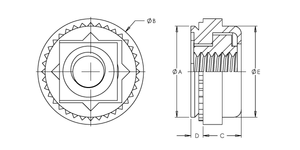

• Dim A Max.: 10.29
• Dim B: 11.94 ±0.38
• Dim C Max.: 4.32
• Dim D Max.: 0.97
• Dim E Max.: 10.29
• CL to Edge Distance: 9.14
• CRS Installation Force: 15.6 kN
• CRS Push Out: 1779 N
• CRS Torque Out: 16.9 N-m
• 5052 H34 Aluminum Installation Force: 8.9 kN
• 5052 H34 Aluminum Push Out: 1334 N
• 5052 H34 Aluminum Torque Out: 16.9 N-m
• AL 2024-T3 Installation Force: 15.6 kN
• AL 2024-T3 Push Out Force: 1334 N
