Specifications :

• MFG Part Number : CFAC440-1
• Product Group: CFAC
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.290 +0.003 -0.00
• Sheet Thickness: 0.038

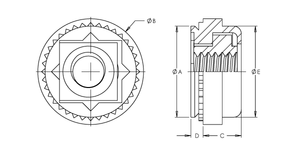

• Dim A Max.: 0.289
• Dim B: 0.360 ±0.015
• Dim D Max.: 0.038
• Dim E Max.: 0.29
• CL to Edge Distance: 0.3
• CRS Installation Force: 3000 lbs
• CRS Push Out: 300 lbs
• 5052 H34 Aluminum Installation Force: 1500 lbs
• 5052 H34 Aluminum Push Out: 215 lbs
• 5052 H34 Aluminum Torque Out: 65 in-lbs
• AL 2024-T3 Installation Force: 3000 lbs
• AL 2024-T3 Push Out Force: 220 lbs
