Pflitsch is with multiple inlet – our most flexible cable gland
January 25, 2019
1 min read

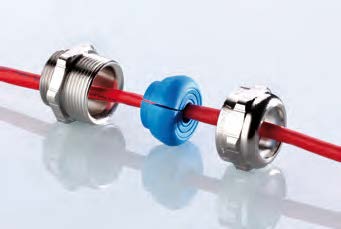

With the blueglobe®, PFLITSCH has a cable gland in its range of products that impresses the most exacting customer with its safety, functionality and optimum value for money. Now PFLITSCH has extended the blueglobe® series with a cable gland that performs with a single sealing insert the sealing ranges of 20 mm to 6 mm.Technical details:· Very large sealing range for cable diameters of 20 mm to 6 mm (Sealing range of standard blueglobe®: 20 mm to 11 mm)· Type of protection IP 68· Temperature range: -40°C up to +130 °C· Very high strain relief up to Class B, EN 62444· Available size M25

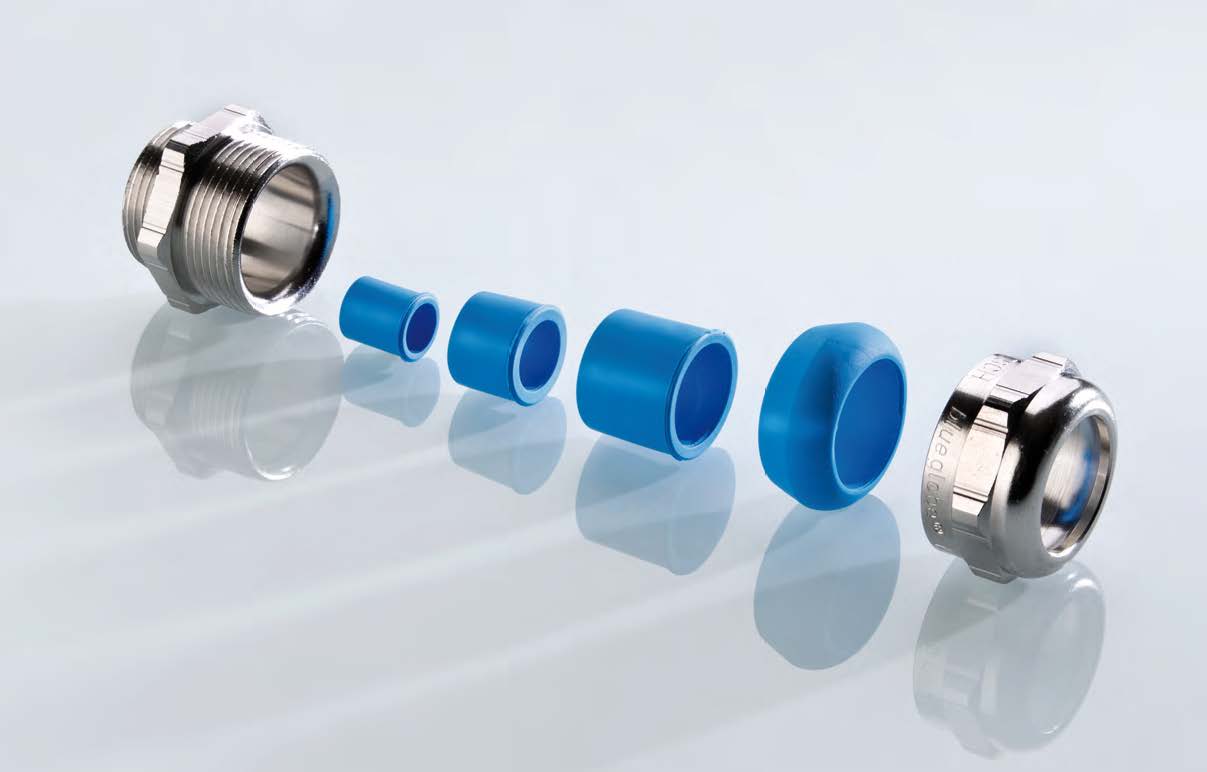

Advantages of the blueglobe® with multiple-inlet:· 55 % larger sealing range than a standard blueglobe® cable gland· The unique sealing insert with three inlets allows the sealing range to be quickly and easily adjusted for each particular application· No need for a special tools, use of a screwdriver for separation· Only one cable gland for a variety of cable diametersThat means:- Lower storage costs- Minimum effort for orders- Less time for article data management- Easy and fast installation because one size of tool is neededAdditional advantages of the blueglobe® with slottedmultiple-inlet:Easy, uncomplicated installation of preassembled cablesAdditional advantages of the blueglobe® with multiple-inlet asclosed version-Transport protection-Dust protection

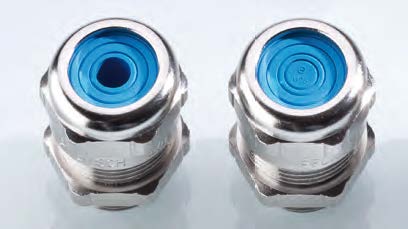

blueglobe® with multiple-inletVery large sealing range from 20 mm up to 6 mmIP 68 up to 15 barIf you are interested in blueglobe®or any other Pflitsch product you can contact your local TCH representative at 1-800-465-6281 or email us at firstname.lastname@example.org.
