Conta-Clip KES Cable Entry System

  • 2 min read

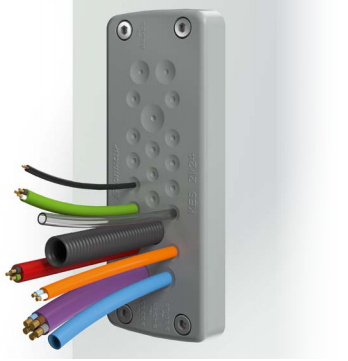

   KES Cable Entry System by Conta-Clip

Two components The KES system consists of two components. The inner core, made of polyamide PA 6.6 GF, is crucial for the stability and strain relief; it is over-moulded in the sealing areas with TPE to ensure an IP66 seal.Many cables in a confined space Many cables (with various diameters from 3.2 to 20.5 mm) can be inserted in a confined space and double sealed (IP66) thanks to the special construction of the conical grommets. The installation can use a screw-on outer mount optionally using threaded bushes from the inside, or snapping on without screws. In order to insert the cables, the corresponding membrane (with marked centring point) must be pierced; the cables are then simply guided through.UL 94 V-0 classification The KES is designed for use in mounting cut-outs together with 24-pin heavy-duty connectors. All variants are available in grey and black. The materials used comply with the UL 94 V-0 classification.

KES Variants

1. Screw-on mount

The KES (without threaded bush) is screwed from the outside onto the housing wall.

2. Screw-on mount with threaded bushes and latching clips

Using the latching clips, the KES-GB latches onto the outside of the housing wall. It is then screwed on from the inside, through the housing wall, using the integrated threaded bushes.

3. Latched (snap-on) mount using latching hooks

Your advantages

• Can be screwed/snapped on• Very high stability (core: PA 6.6 GF)• Outstanding strain relief (cone grommet)• Very simple assembly (with marked centring point)• High-density assemblies• Double sealing / IP66 seal• Hygienic design: no dirt-prone niches • Large assortment (48 varieties)• UL-listed plastic materials• UL 94 V-0For more information about technical specifications and technical specifications, you can download the full brochure on the TCH Electronic Component website at
